Macintosh II
The first expandable, colour-capable Mac — six NuBus slots, a colour display and the famous 'frying pan' logic board. A giant leap from the 9″ classics.第一台可擴充、支援彩色的 Mac——六個 NuBus 插槽、彩色顯示器，以及著名的「煎鍋」邏輯板。相較於 9 吋經典機型，是一大躍進。
The Mac II's startup chime was composed by Jim Reekes on a Korg synthesizer — in his living room.Mac II 的開機音效是 Jim Reekes 用 Korg 合成器在他的客廳裡創作的。

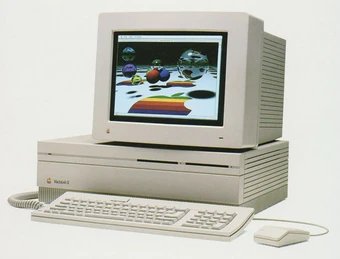

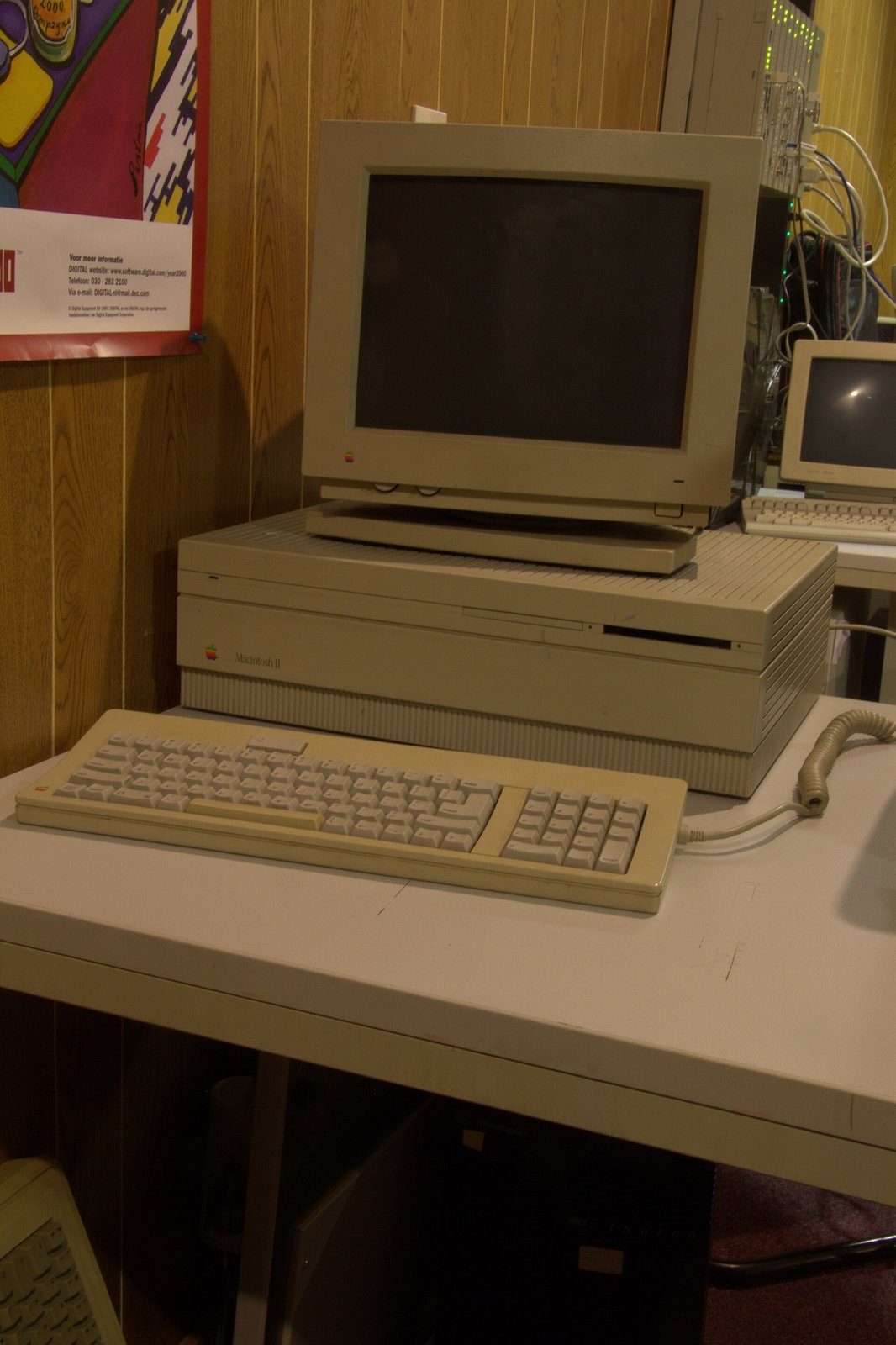

The Macintosh II (1987) was Apple's first modular, expandable Mac, with six NuBus slots and a separate colour-capable monitor. It introduced Color QuickDraw, enabling 16.7 million colours and setting a new industry standard for colour computing. Its open architecture earned it the nickname "Open Mac".Macintosh II（1987）是 Apple 第一台模組化、可擴充的 Mac，配備六個 NuBus 插槽與獨立可支援彩色的顯示器。它導入了 Color QuickDraw，可呈現 1,670 萬種顏色，為彩色運算樹立了新的業界標準。其開放式架構為它贏得了「Open Mac」的稱號。
| Introduced推出 | March 2, 1987 |
|---|---|
| Discontinued停產 | January 15, 1990 |
| Processor處理器 | Motorola 68020 · 16 MHz (68881 FPU) |
| Memory記憶體 | 1 MB standard (1 or 4 MB configs), up to 128 MB (with MODE32/FDHD kit) |
| Storage儲存 | 40/80 MB SCSI hard drive; 800k floppy ×2 (1.44 MB via FDHD upgrade) |
| Display顯示 | None built-in; optional video card (up to 6 displays, 512×384/640×480) |
| Operating system作業系統 | System 4.1 (System Software 2.0; up to 7.5.5) |
| Original price原價 | US$3,769 (CPU) – US$5,500 (basic system) |
| Weight重量 | 24.0 lbs (10.9 kg) |
| Dimensions尺寸 | 5.5 × 18.7 × 14.4 in (14 × 47.5 × 36.6 cm) |
