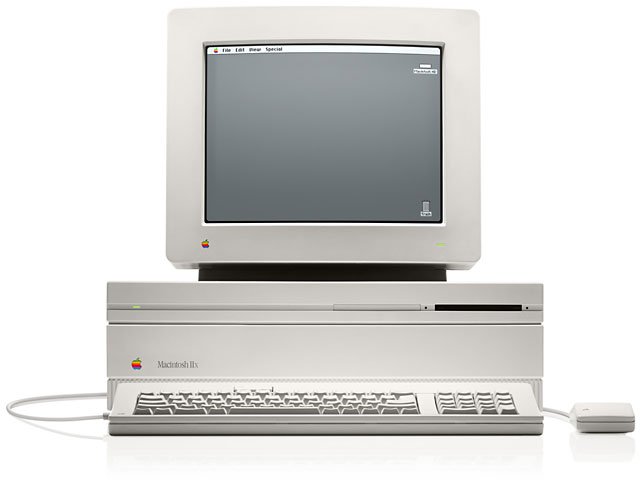

Macintosh IIx
A faster Mac II with the 68030 CPU and 1.44 MB SuperDrive. Colour graphics still needed a NuBus video card — onboard video only arrived with the IIci.配備 68030 處理器與 1.44 MB SuperDrive 的更快速 Mac II。主機板上的內建視訊功能讓彩色 Mac 更平價。
The IIx was Apple's first Macintosh to ship with the 1.44 MB SuperDrive as standard.IIx 是 Apple 第一台以 1.44 MB SuperDrive 為標準配備出貨的 Macintosh。
The Macintosh IIx (1988) kept the Mac II's "Open Mac" case but upgraded to a 16 MHz 68030 CPU with a 68882 FPU — the first Mac to ship with that processor pair. It was also the first Mac to ship standard with the 1.44 MB SuperDrive. Like the Mac II, it required a NuBus video card for display.Macintosh IIx（1988）沿用 Mac II 的「Open Mac」機殼，但將處理器升級為 16 MHz 的 68030 與 68882 浮點運算器——是首款採用這組處理器的 Mac。它同時也是第一台以 1.44 MB SuperDrive 為標準配備出貨的 Mac。與 Mac II 相同，它需要搭配 NuBus 顯示卡才能輸出畫面。
| Introduced推出 | September 19, 1988 |
|---|---|
| Discontinued停產 | October 15, 1990 |
| Processor處理器 | Motorola 68030 · 16 MHz (68882 FPU) |
| Memory記憶體 | 1 MB standard (1 or 4 MB configs), up to 128 MB |
| Storage儲存 | 40/80 MB SCSI hard drive; 1.44 MB SuperDrive ×2 |
| Display顯示 | None built-in; optional video card (up to 6 displays, 512×384/640×480) |
| Operating system作業系統 | System 6.0.1 (up to 7.5.5) |
| Original price原價 | US$7,800 – US$9,300 |
| Weight重量 | 24.0 lbs (10.9 kg) |
| Dimensions尺寸 | 5.5 × 18.7 × 14.4 in (14 × 47.5 × 36.6 cm) |
